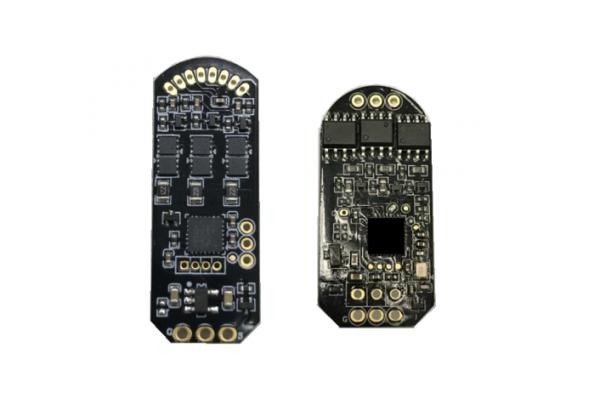

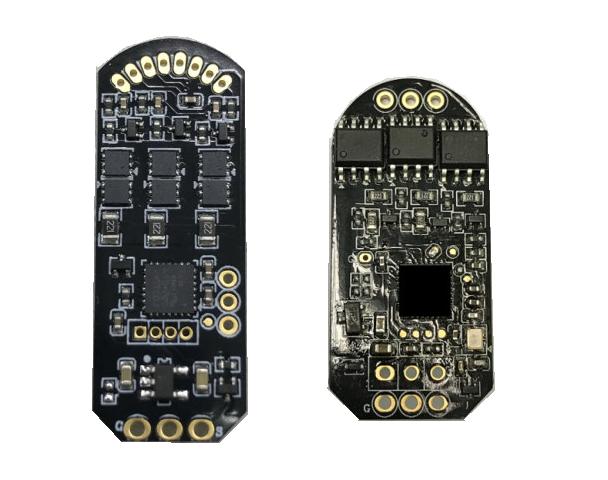

ESMT Brushless
8 pin
| Part No | OP20005 |
| MCU | 32bit MCU |
| MCU Operating Temperature | -40~85℃ |
| Operating Voltage | 4.8V~8.4V |
| Max Operating Current | 6A |
| Quiescent Current | <30mA |
| PID Parameters | Adjustable |
| Angle Range | Adjustable |
| Steady State Error | Adjustable |
| Sensitivity | Adjustable |
| Dead band | Adjustable |
| Lock Protection | Adjustable |
| Over Voltage Protection | Yes (Adjustable) |
| Over Temperature Protection | Yes (Adjustable) |
| Firmware Update | ESMT Boot-loader |
| PWM_ UART | Both Support *Baud rate：38400~ 1M bps |
| XTAL | External |
|---|---|
| Download |
3 pin
| Part No | OP20001 |
| MCU | 32bit MCU |
| MCU Operating Temperature | -40~85℃ |
| Operating Voltage | 4.8V~8.4V |
| Max Operating Current | 6A |
| Quiescent Current | <30mA |
| PID Parameters | Adjustable |
| Angle Range | Adjustable |
| Steady State Error | Adjustable |
| Sensitivity | Adjustable |
| Dead band | Adjustable |
| Lock Protection | Adjustable |
| Over Voltage Protection | Yes (Adjustable) |
| Over Temperature Protection | Yes (Adjustable) |
| Firmware Update | ESMT Boot-loader |
| PWM_ UART | Both Support *Baud rate：38400~ 1M bps |
| XTAL | External |
|---|---|
| Download |
